AP System Battery Chart
Experience unparalleled power and convenience with the lightweight 36V Lithium-Ion AP batteries from STIHL. Designed for seamless compatibility with the entire STIHL AP System of cordless tools, including hedge trimmers, chainsaws, grass trimmers, pole pruners, leaf blowers, and lawn mowers, these batteries deliver exceptional performance and efficiency.
Effortlessly monitor your battery's charge level with the integrated four-LED indicator. A simple button press provides a quick and clear visual display of remaining power, ensuring you're always prepared for your next task

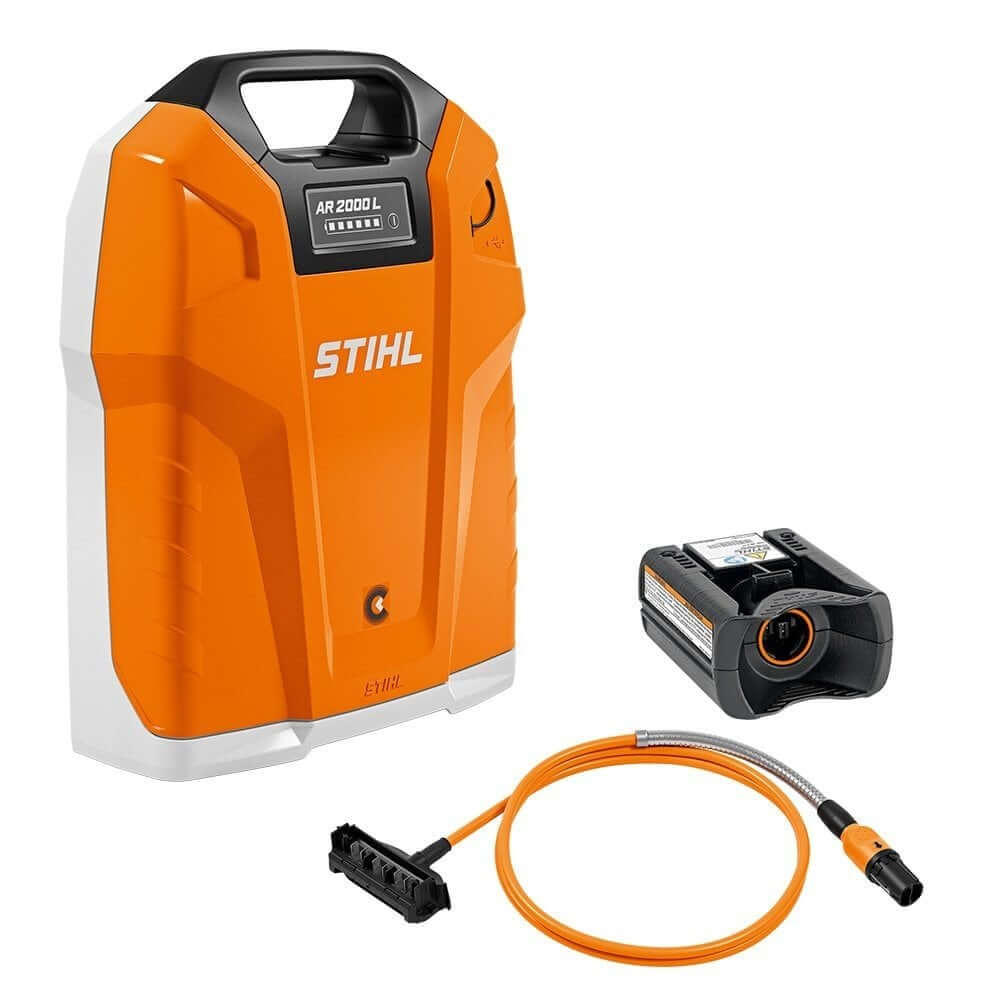

| AP System Batteries | AP 200 | AP 300 | AP 300 S | AP 500 S | AR 2000 L | AR 3000 L |
|---|---|---|---|---|---|---|
| Battery Charging Times - Minutes (80% / 100% capacity) | ||||||
| AL 101 Charger | 150/200 | 190/250 | 230/300 | 280/355 | - | - |

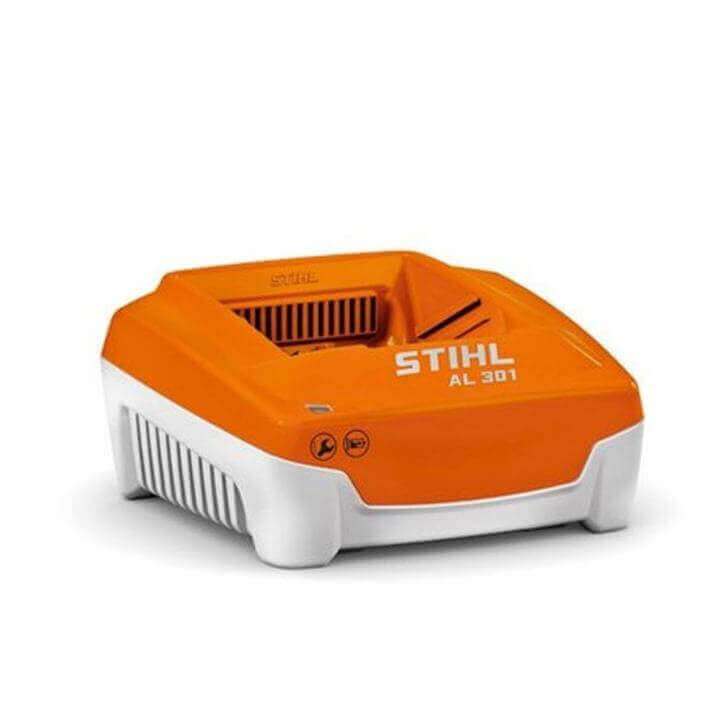

| AL 301 Charger | 40/55 | 50/75 | 55/80 | 70/90 | 220/290 | 330/430 |

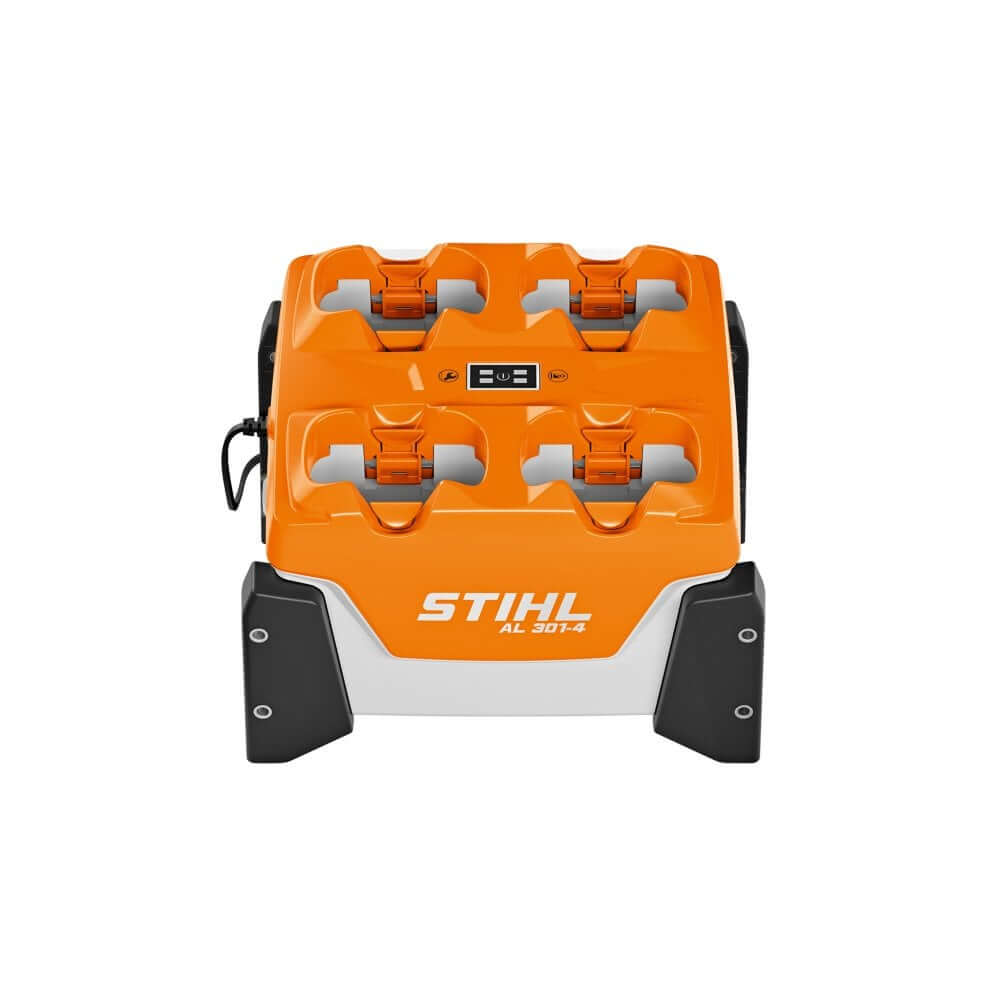

| AL 301-4 Charger | 40/55 | 50/75 | 55/80 | 70/90 | 220/290 | 330/430 |

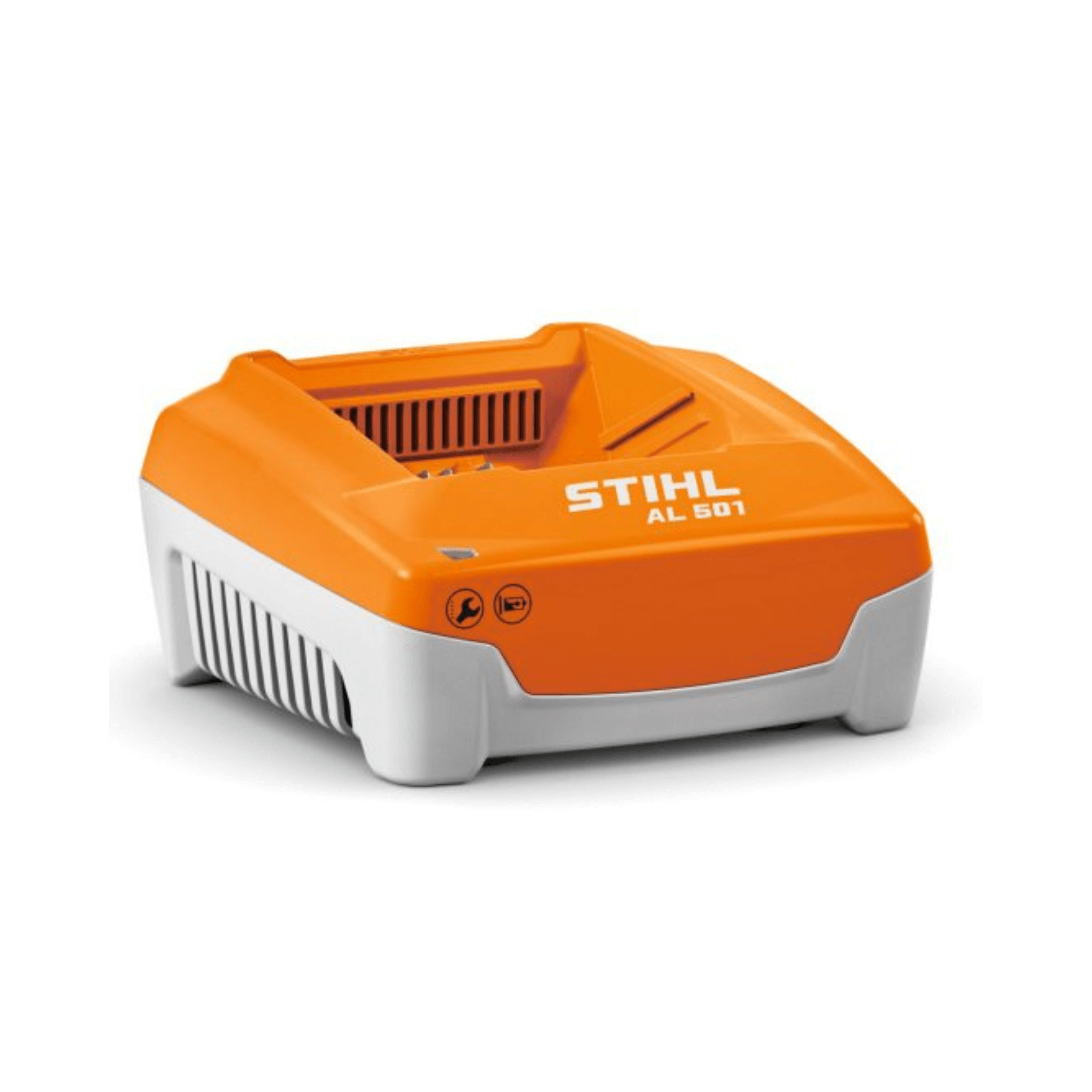

| AL 501 Charger | 30/45 | - | 30/45 | 40/55 | 110/150 | 170/220 |
| Run Times per Battery Charge - Minutes 1 | ||||||
| MSA 160 C-B | 42 | 50 | 62 | 74 | 195 | 300 |
| MSA 161 T** | 42 | 50 | 62 | 74 | 195 | 300 |
| MSA 220 T | 35* | 40 | 50 | 60 | 175 | 260 |
| MSA 220 TC-O** | 16* | 25* | 29 | 34 | 109* | 174* |
| MSA 300 | - | - | - | 44-20 | - | - |
| HTA 66 | 46 | 55 | 68 | 82 | 195 | 300 |
| HTA 86 | 46 | 55 | 68 | 82 | 195 | 300 |
| HTA 135 | 22* | 35 | 45 | 54 | 160 | 240 |
| HTA 150 | 30 | 47 | 60 | 68 | 222 | 333 |
| HTA 50 | 45 | 56 | 70 | 80 | 262 | 393 |
| KMA 120 R (FS-KM line head)2 | 30-14* | 38-18 | 47-22 | 54-26 | 200 | 300 |
| KMA 135 R(FS-KM line head)2 | 28-14* | 36-17 | 45-22 | 54-28 | 160-80 | 200-115 |
| FSA 86 R (line head) | 35 | 42 | 52 | 62 | 185 | 280 |
| FSA 120 (line head) | 30 | 40 | 50 | 60 | 200 | 300 |
| FSA 120 R (line head) | 30 | 40 | 50 | 60 | 200 | 300 |
| FSA 135 (line head)2 | 28-17* | 36-19 | 45-25 | 54-30 | 160-90 | 220-130 |
| FSA 135 R (line head)2 | 28-17* | 36-19 | 45-25 | 54-30 | 160-90 | 220-130 |
| FSA 200 (line head) | 21-11* | 24-14 | 32-17 | 40-20 | 116-62 | 170-92 |
| FSA 200 R (line head) | 21-11* | 24-14 | 32-17 | 40-20 | 116-62 | 170-92 |
| HSA 100 | 150 | 180 | 225 | 270 | 730 | 1,100 |
| HSA 130 R2 | 108-84 | 135-105 | 167-130 | 200-155 | 690-565 | 985-800 |
| HSA 130 T2 | 108-84 | 135-105 | 167-130 | 200-155 | 690-565 | 985-800 |
| HLA 66 | 144 | 180 | 223 | 268 | 715 | 1,040 |
| HLA 86 | 144 | 180 | 223 | 268 | 715 | 1,040 |
| HLA 135 (145º) | 64 | 77 | 95 | 114 | 345 | 520 |
| BGA 86 | 17 | 21 | 26 | 31 | 90 | 140 |
| BGA 1003 | 66-12* | 83-16 | 103-20 | 123-24 | 320-65 | 510-95 |
| BGA 2003 | 49-7* | 78-12 | 95-14 | 114-17 | 315-53 | 500-85 |
| BGA 3003 | - | - | 50-20 | 58-24 | 97-48* | 140-61 |
| SGA 85 | 1,000 | - | - | - | - | - |
| TSA 230 | 14* | 18 | 22 | 26 | 80 | 125 |
| Working Range per Battery Charge -Sq.m. 1 | ||||||
| RMA 453 PV | - | 450 | - | - | ||
| RMA 2 RV | - | 510 | 3,842 | - | - | |
| RMA 765 V4 | - | - | - | 2050 | 3100 | |
*Reduced tool performance.
Note: Battery/tool combinations providing the best balance, adequate run time, and performance are shown in bold.
1The battery run time and working range specifications for each battery are estimates and may vary depending on usage and application.
2Level 1 – Level 3
3Level 1 – Boost
4When used with the ADA 1000

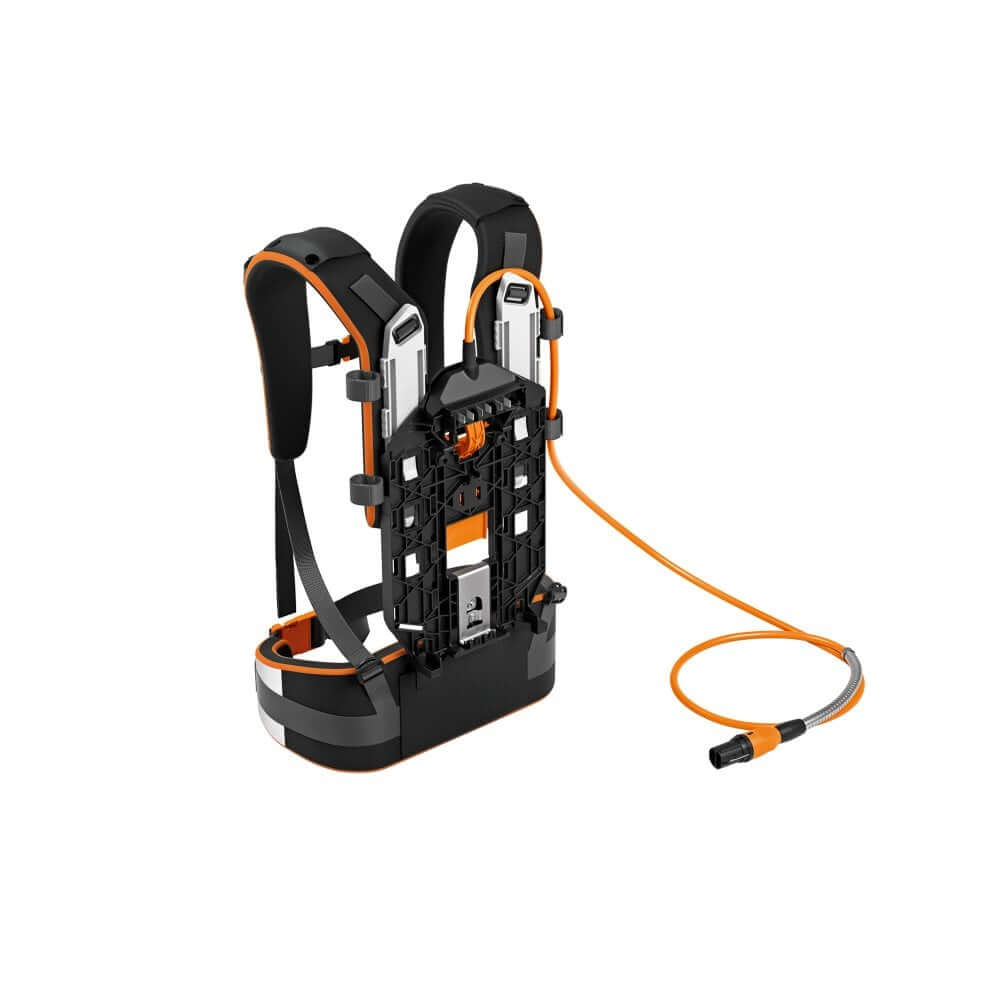

**WARNING: If using an AR System battery or AP System battery in a battery bag with connecting cord, always use a lift bucket for in-tree surgery and maintenance.
Do NOT climb in the tree.
